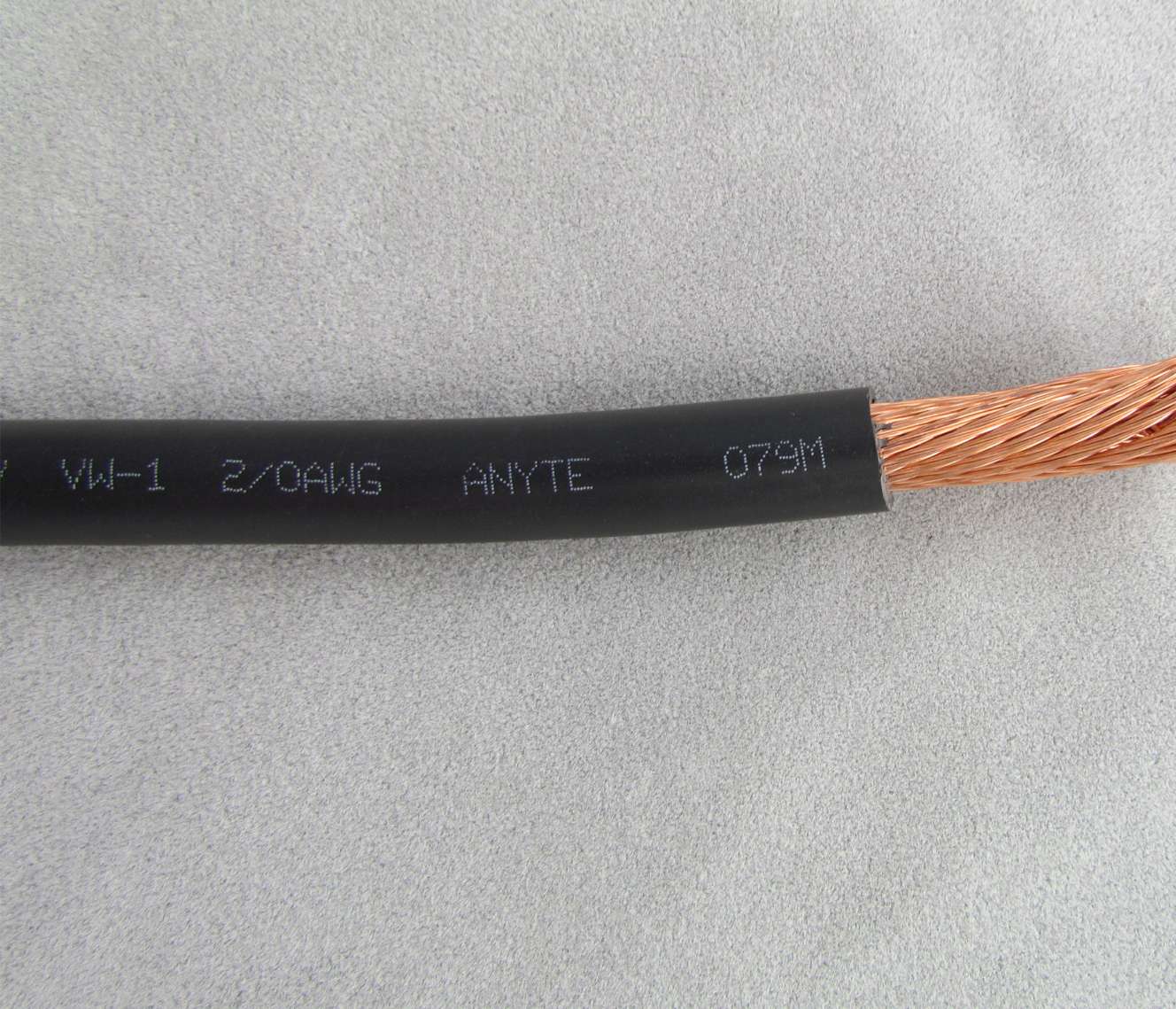

AWM UL3289

AWM UL3289

AWM UL3289

♦ Conductor: Flexible Stranded Copper
♦ Insulation: XLPE
♦ Insulation Color: Black or customized
♦ Temperature : 150°C
♦ Nominal Voltage: 600VAC / 750VDC

1.Introduction of AWM UL3289

UL 3289 hook-up wire has a temperature rating of 150°C and a voltage rating of 600V. UL 3289 wire irradiation cross-linked polymeric insulation possesses remarkable mechanical, flame resistance, and electrical properties. UL 3289 is also a halogen-free, flame-retardant UL/CSA approved stranded wire for the wiring of electrical panels, switchgear, electrical and electronic equipment. It is also suitable for use as a connection wire for motor and transformer windings, chokes, and relays that are subjected to impregnation and/or as a connecting wire in an environment that demands a high-temperature resistance..Welcome to inquiry.



2.Parameter (Specification) of AWM UL3289

Description

AWM UL3289

Conductor:

Solid or stranded fine bare copper or tinned copper wire

Insulation:

XLPE

Insulation Color

 As requested

Rated Temperature

150°C

Rated voltage:

600V /  750V

Test Voltage:

3000 V

Minimal Bending Radius:

  8D

Standard

UL758

File No.

E350339



Technical Data

CONDUCTOR

INSULATION

Size

Section area



O.D.

thickness

O.D.

(AWG)

(mm²)

(NO./mm)

(mm)

(mm)

(mm)±0.10

26

0.128

1 / 0.404

0.404

0.76

1.93





7 / 0.16

0.48

2.01

24

0.205

1 / 0.51

0.51

2.04





11 / 0.16

0.61

2.14

22

0.324

1 / 0.643

0.643

2.17





7 / 0.254

0.76

2.29





17 / 0.16

0.76

2.29

20

0.519

1 / 0.813

0.813

2.35





26 / 0.16

0.94

2.47





21 / 0.18

0.95

2.48



3.Feature of the AWM UL3289

1)  30 AWG – 750 kcmil
2) Suitable for switchboard wire
3) Appliance Wiring Material UL 758





4.Detail of the AWM UL3289



1) Flame retardant
2) ROHS2.0 & REACH
3) Resistant to water, oil, acids, solvents and fungus.
4) Brand: Anyte

5 Packaging & Delivery



1) Packaging Details:

It is determined by the quantity and requirements you purchase.  Can be negotiated.



2) Port: SHANGHAI, NINGBO

Delivery: By Sea, By Air, By express.



6 FAQ

What is your lead time for bulk goods?

A: Honestly, it depends on order quantity and cable material. Normal lead time is around 2-3weeks.



Q: How do you guarantee the quality?

A: We are an UL/TUV/CSA/SAA/ISO9000.1 certificated company. All our materials are RoHS 2.0. When production,For each step inspector is on routing inspection, and 100% test before delivery.
